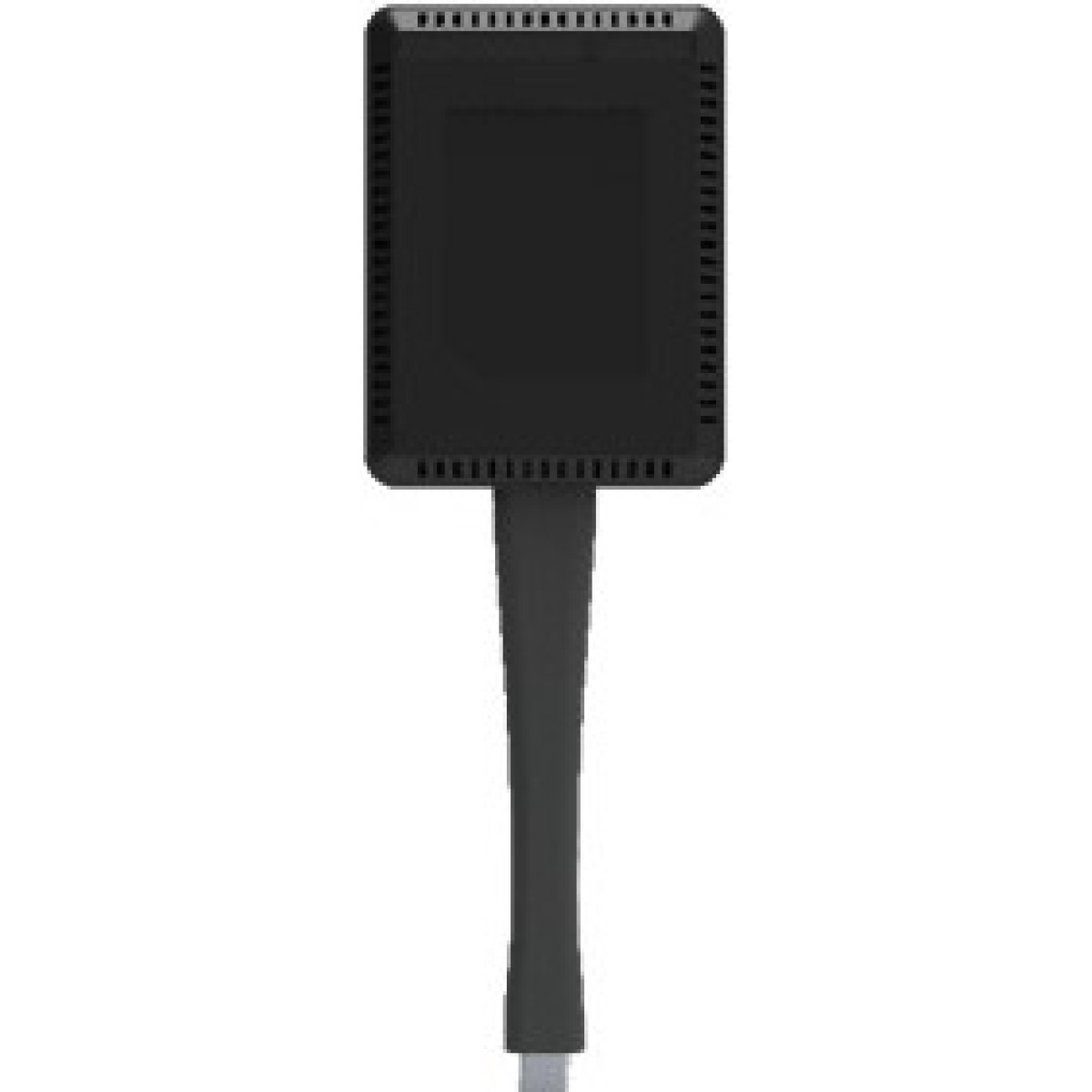

Dahua Wireless Screen Sharing Dongle – Up to 4K Input Resolution, Up to 3840 x 2160 Output Resolution, Full Features Type-C Interface, IEEE 802.11 a/g/n Wireless Protocol, 54Mbps Wireless Data Rate, Up to 60fps Frame Rate, 2.4GHz and 5GHz Frequency Band, 2.5W Power Consumption, Retail Box, 1 Year Warranty.
Product Overview
This compact dongle enables plug‑and‑play wireless projection up to 4K, with no software or drivers required, making it easy to share audio and video from laptops, Chromebooks, iPads, and mainstream operating systems including Windows, macOS, Linux, and Android. It supports dual‑band Wi‑Fi (2.4 GHz / 5 GHz), up to 60 fps FHD, and a 15 m wireless range, plus touch‑feedback so users can interact with the casting device from a compatible touch display for more interactive meetings. Designed for business and education, it features WPA2‑secured encryption, multi‑device pairing, and seamless casting with just one button press, ideal for projecting to projectors, IFPs, TVs, and other HDMI‑enabled displays.
Features
•No need to install software or drivers.
•Hassle free, there is no need to install cables.
•Performs projection with just the press of a button.
•Displays in 4K delivering a crisp image.
•Easy to use, it wirelessly transmits videos and audio to other devices, making it ideal for meetings.
•Supports Chrome, iPads and mainstream operating systems such as Windows, macOS, Linux and Android.
Specifications
•Product Code: DHI-PKP-WP1B
•Description: Wireless Screen Sharing Dongle
•Input Resolution: 480p, 576p, 720p, 1080p, 4K
•PC timing: 640 × 480, 800 × 600, 1024 × 768, 1280 × 720, 1920 × 1080, 3840 × 2160
•Output Resolution: 720 × 480, 720 × 576, 1280 × 720, 1920 × 1080 (1080p), 3840 × 2160
•Interface: Full featured Type-C
•Input Voltage: 5 VDC (Type-C power supply)
•Power Consumption: 2.5W
•Current Consumption: 0.9A
•Operating System: Windows® 7, Windows 8.1, Windows 10 or Windows 11, macOS™, Chrome OS, Linux OS, Android OS. Any OS supports full featured Type-C
•Encryption: CCMP
•Authentication Protocol: WPA2 (WPA2-PSK (Pre-Shared key) / WPA2-Enterprise)
•Wireless Transmission Protocol: IEEE 802.11 a/g/n
•Wireless Data Rate: 54 Mbps
•Frame Rate: Up to 60 fps depending on environment (FHD)
•Touch Control Back: Support 10 Points
•Net Weight: 80g (0.18lb)
•Dimensions: 176 mm x 58 mm x 17 mm (6.93″ × 2.28″ × 0.67″)
•LED: Blue, Green, Red
•Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
•Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
•Operating humidity: 0%–80% (RH) (non-condensing)
•Transmission distance: The distance between wireless projectors and the host is up to 15 m (49.21 ft)
•Frequency band: 2.4 GHz and 5 GHz (recommended)
