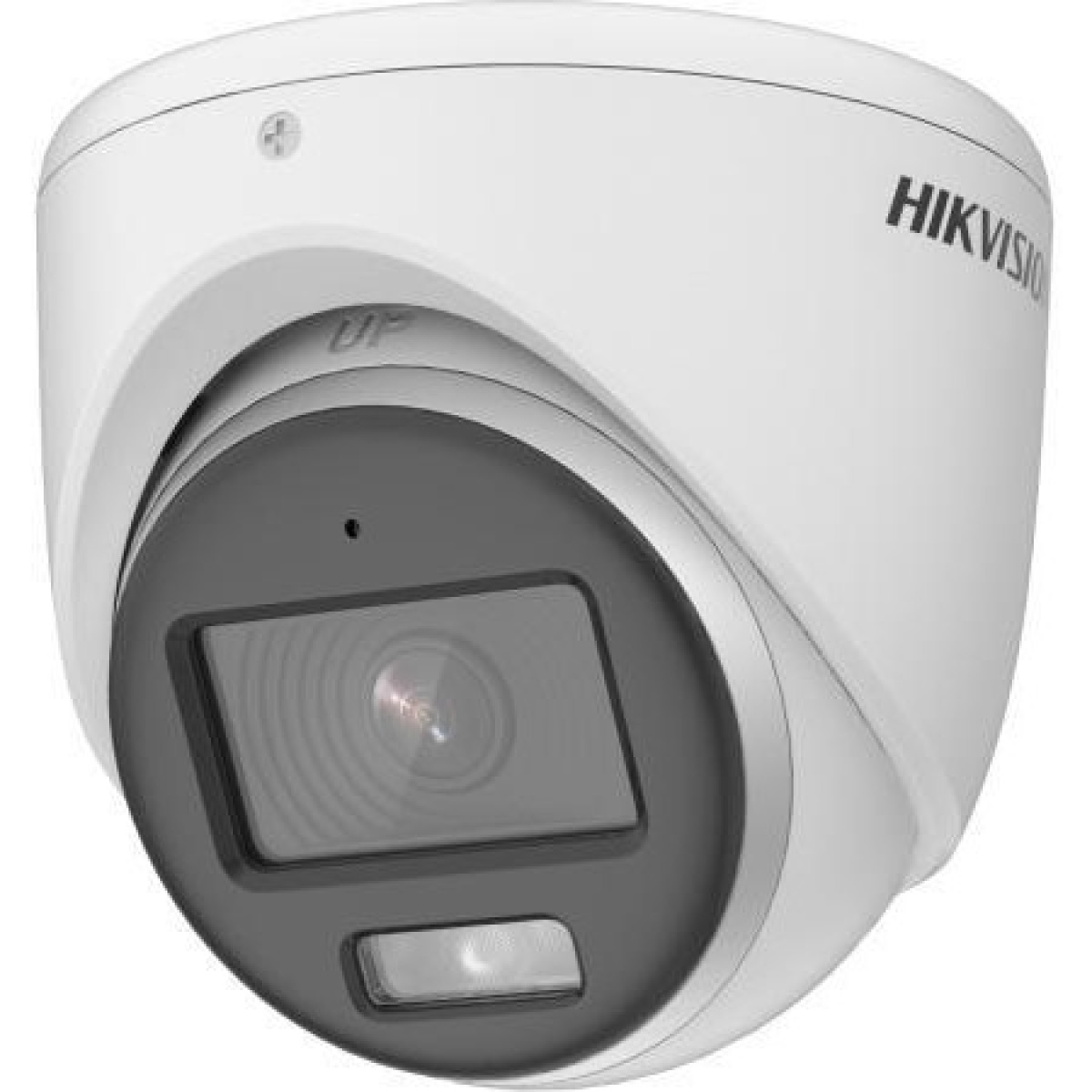

Hikvision 2MP ColorVu Audio Fixed Turrent Camera – 2MP at 1920 x 1080 Resolution, 24/7 Color Imaging, 3D DNR Technology, 2.8 mm, 3.6 mm Fixed Lens, Up to 20m White Light Distance, Built-in Mic, High Quality Audio, IP67 Water and Dust Resistant, Retail Box, 6 Months Warranty.
Product Overview
Hikvision 2MP ColorVu Audio Fixed Turret Camera – 1080p Full‑Color Surveillance Delivers 2 MP 1920×1080 Full HD color imaging with a 2.8 mm or 3.6 mm fixed lens, 0.001 lux low‑light sensitivity and white‑light illumination up to 20 m for clear 24/7 color video. Features digital WDR, 3D/2D DNR, BLC/HLC, and switchable TVI/AHD/CVI/CVBS video output, plus a built‑in microphone and white‑light alarm for enhanced situational awareness in Turbo HD systems. IP67‑rated metal housing, operating from −40 °C to 60 °C, supports pan/tilt/rotation adjustment and HIKVISION‑C protocol for easy integration into existing Hikvision‑based CCTV setups.
Features
•High quality imaging with 2 MP, 1920 × 1080 resolution
•24/7 color imaging with F1.0 aperture
•3D DNR technology delivers clean and sharp images
•2.8 mm, 3.6 mm fixed focal lens
•Up to 20 m white light distance for bright night imaging
•High quality audio with audio over coaxial cable, built-in mic
•One port for four switchable signals (TVI/AHD/CVI/CVBS)
•Water and dust resistant (IP67)
Specifications
•Product Code: DS-2CE70DF0TLMFS 2.8MM
•Description: 2MP ColorVu Audio Fixed Turret Camera
•Image Sensor: 2 MP CMOS
•Max. Resolution: 1920 (H) × 1080 (V)
•Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
•Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
•Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
•Signal System: PAL/NTSC
Lens
•Lens Type: 2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
•2.8 mm, horizontal FOV: 105°, vertical FOV: 55°, diagonal FOV: 125°
•3.6 mm, horizontal FOV: 84°, vertical FOV: 45°, diagonal FOV: 99°
•Lens Mount: M12
Illuminator
•Supplement Light Type: White Light
•Supplement Light Range: Up to 20 m
•Smart Supplement Light: Yes
•Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
•Image Settings: Brightness, Sharpness, Anti-banding, AGC
Frame Rate
•TVI: 1080p @25 fps/30 fps
•CVI: 1080p @25 fps/30 fps
•AHD: 1080p @25 fps/30 fps
•CVBS: PAL/NTSC
•Day/Night Mode: Color
•Wide Dynamic Range (WDR): Digital WDR
•Image Enhancement: DWDR, BLC, HLC, Global
•Noise Reduction: 3D DNR/2D DNR
•White Balance: Auto, Manual
Interface
•Video Output: Switchable TVI/AHD/CVI/CVBS
•Alarm: Solid Light Alarm (White Light)
General
•Material: Metal
•Power: 12 VDC ± 25%, max. 2 W,*You are recommended to use one power adapter to supply the power for one camera.
•Dimension; Ø85.11 mm × 77.62 mm (3.35″ × 3.05″)
•Approx. 310 g (0.68 lb.)
•Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
•Communication: HIKVISION-C
•Language: English
Approval
•Protection: IP67
