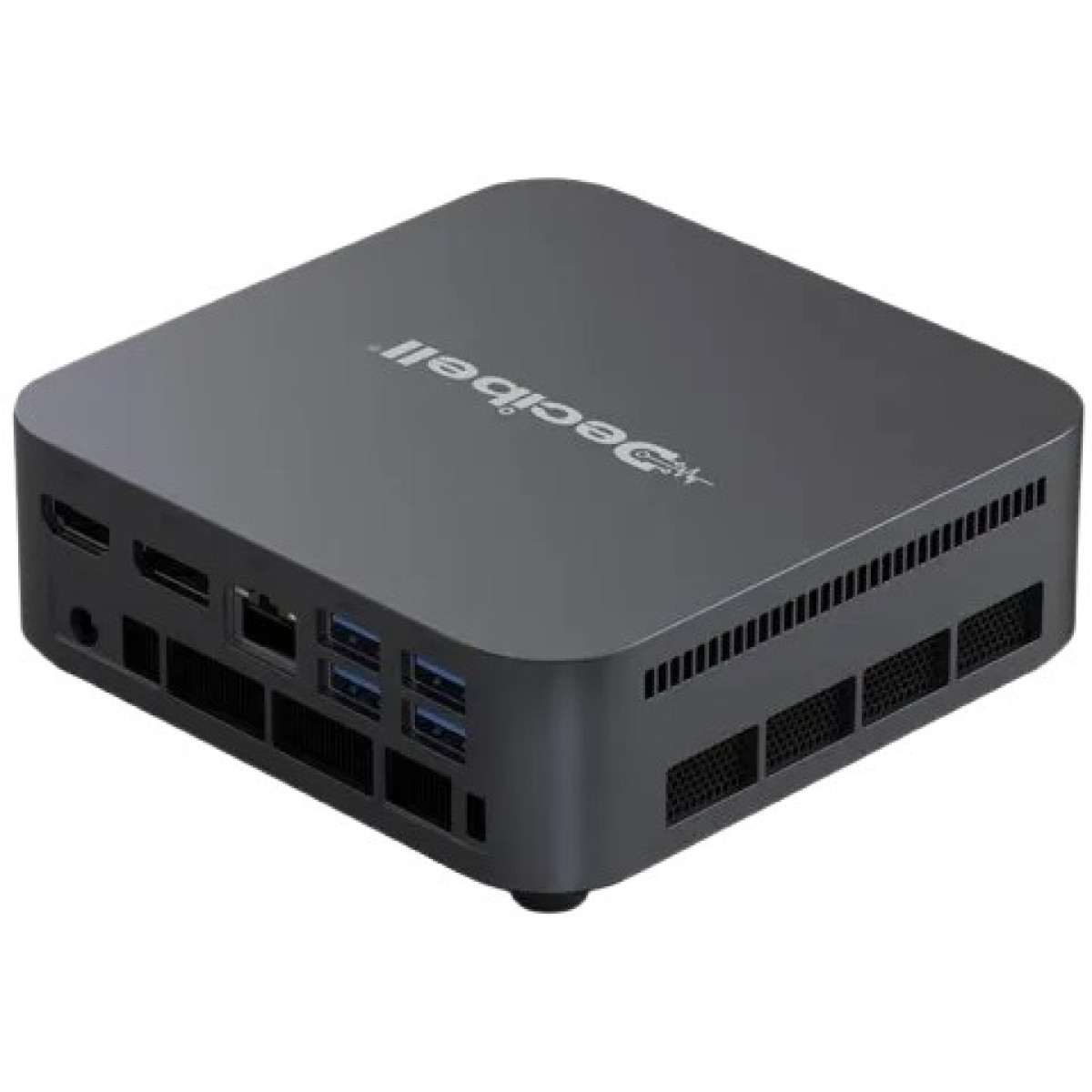

Decibell N3ES Mini Desktop PC – AMD Ryzen AI 9 HX 370 Processor 12 Cores, 24 Threads, 2.0GHz Base Clock Speed, AMD Radeon 890M Integrated Graphics, 16GB DDR5 5600MT/s Memory, 1TB M.2 2280 NVMe PCIe 4.0 SSD, 4K @ 60Hz Display Output, WiFi 6 and Bluetooth 5.2 Connectivity, Windows 11 Pro, Retail Box, 1 Year Warranty.
Product Overview
High-end mini PC chassis powered by the AMD Ryzen AI 9 HX 370 mobile APU: 12 cores / 24 threads, TSMC 4 nm FinFET, 2 GHz base → 5.1 GHz boost, 12 MB L2 + 24 MB L3 cache, 54 W TDP, with integrated TPM 2.0 and AMD Radeon 890M (16 CU, up to 2.9 GHz). Memory and storage are fully upgradeable: 2× SO-DIMM DDR5 slots supporting DDR5‑5600 MT/s up to 64 GB, dual M.2 2280 slots for NVMe PCIe 4.0 SSDs (up to 2 TB each), optional 2.5″ SSD/HDD bay, and TF card slot, plus 2.5 GbE LAN, Wi‑Fi 6 (802.11ax) and Bluetooth 5.2 via M.2 E‑Key. Rich I/O and video: HDMI 2.0 (4K@60 Hz), DP 1.4 (4K@60 Hz), and USB‑C with 10/40 Gbps, 4K display, and 100 W PD, plus 2× front USB‑C 3.2 Gen2 Type‑A, 4× rear USB‑3.2 Gen1 Type‑A, combo 3.5 mm audio jack, DC 5.5×2.1 mm power, optional serial, and LED status indicators for S0/S3/S5 states.
Specifications
•Product Code: N3ES-AI9-16D5-1TB
•Description: Decibell N3ES AMD Ryzen AI 9 Mini Desktop
•Processor: AMD Ryzen AI 9 HX 370
•Manufacturing Process: TSMC 4nm FinFET
•CPU Cores / Threads: 12 Cores, 24 Threads
•Cache: L2 12MB / L3 24MB
•Base Clock Speed: 2.0GHz
•Max Boost Speed: Up to 5.1GHz
•TDP: 54W
•Graphics: AMD Radeon™ 890M Integrated Graphics
•GPU Cores: 16 Cores
•GPU Frequency: Up to 2900MHz
•Memory Type: Dual Channel SO-DIMM DDR5
•Memory Speed: DDR5-5600 MT/s
•Memory Capacity: Up to 64GB
Storage:
•1TB M.2 2280 NVMe PCIe 4.0 SSD
•Expandable up to 2TB SSD
Wireless Connectivity:
•WiFi 6 (802.11 a/b/g/n/ac/ax)
•Bluetooth 5.2
LAN:
•2.5 Gigabit Ethernet (10/100/1000/2.5G Adaptive)
Video Outputs:
•HDMI 2.0 (4K @ 60Hz) x1
•DisplayPort 1.4 (4K @ 60Hz) x1
•USB Type-C with Display Output x1
USB Ports:
•Front: USB 3.2 Gen 2 Type-A x2
•Rear: USB 3.2 Gen 1 Type-A x4
•USB Type-C Features:
•10Gbps / 40Gbps Data Transfer
•4K 60Hz Display Output
•PD 100W Power Delivery
Audio:
•3.5mm Audio Combo Jack
Security:
•TPM 2.0 Integrated in CPU
•BIOS Features:
•Real-Time Clock
•Timed Power-On
•Automatic Boot After Power Restoration
•UEFI Diskless Boot Support
Power Input:
•DC Jack 5.5mm / 2.1mm
•Status Indicators:
•S0: White
•S3: White Breathing Light
•S5/G3: Off
•Operating Temperature: 0°C to 45°C
•Storage Temperature: -20°C to 70°C
•Humidity: 5%–95% @ 40°C (Non-Condensing)
