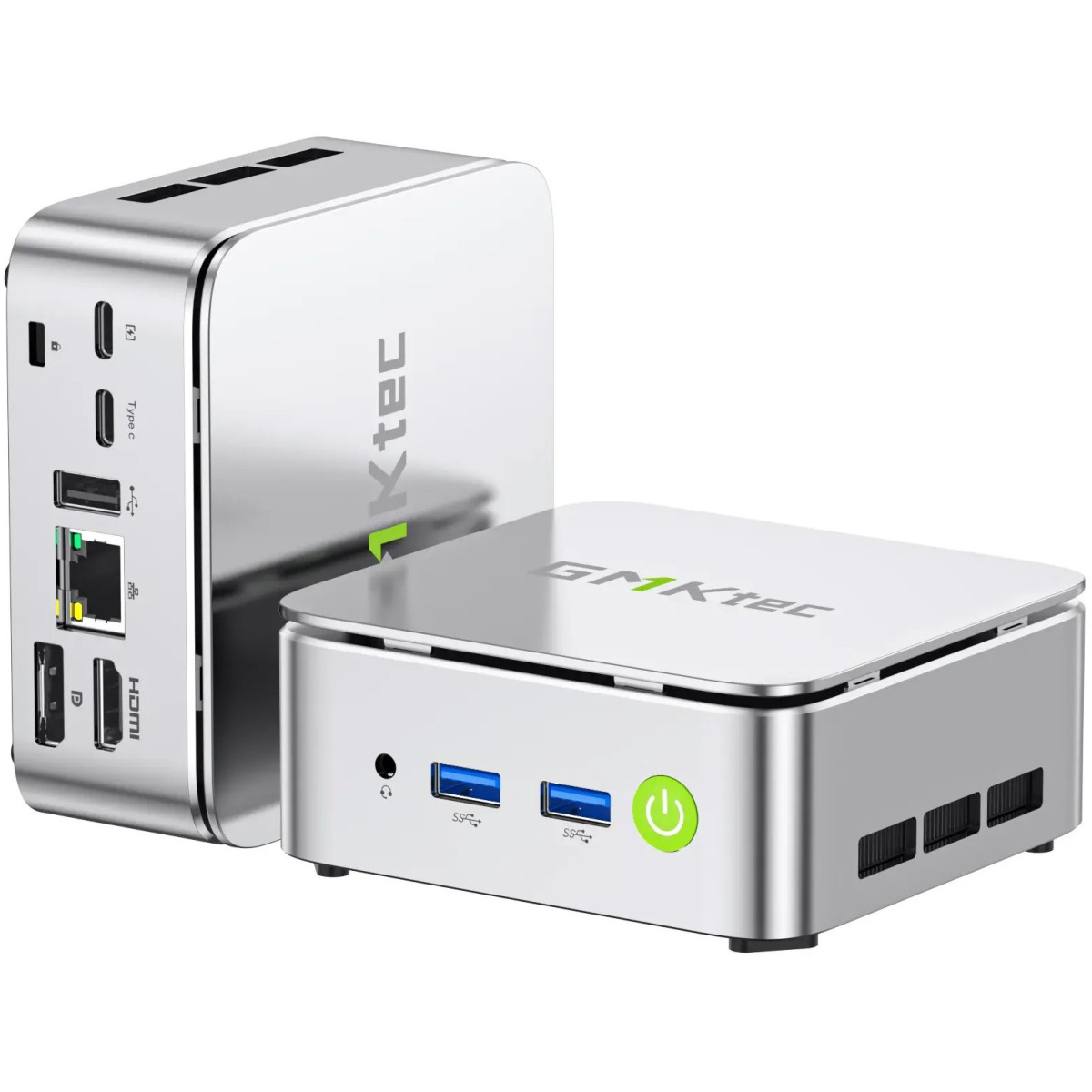

GMKtec NucBox G10 Mini PC – AMD Ryzen 5 3500U Series Quad-Core, 8 Thread, 12nm Process, Max Turbo 3.7GHz, 4MB L3 Cache, TDP 25W, 16GB DDR4 2400MT/s 2 x SO-DIMM Memory, Up to 64GB Supported, 512GB M.2 2280 PCIe 3.0 x 4 SSD, Radeon Vega 8 Graphics, 8 Cores, Up to 1200MHz GPU, Triple Output Via HDMI, DP, Type-C, Supports Up to 8K Resolution, WiFi 5 And Bluetooth 5.0 Connectivity, Windows 11 Pro, Retail Box, 1 Year Warranty.
Product Overview
The GMKtec NucBox G10 is a compact AMD Ryzen 5 3500U mini PC delivering quad‑core, eight‑thread performance with Radeon Vega 8 graphics for everyday productivity, light creative work, and multi‑display setups. It supports up to 64GB DDR4 RAM and dual M.2 PCIe 3.0 SSDs (up to 16TB total), with triple video output (HDMI 2.1, DisplayPort 1.4, USB‑C DP) for up to 8K via DP. Connectivity includes Wi‑Fi 5, Bluetooth 5.0, Gigabit LAN, multiple USB‑A/USB‑C ports (with PD), and it ships with Windows 11 Pro.
Specifications
•Product Code: G-G10
•Description: GMKtec NucBox G10 Mini PC
•CPU Model: AMD Ryzen 5 3500U
•CPU: AMD Ryzen™ 3000 Series, Quad-Core, Eight-Thread, 12nm process, Max Turbo 3.7GHz, 4MB L3 Cache, TDP 25W (MAX 35W)
•CPU Docket/Package: FP5
•GPU: Radeon™ Vega 8 Graphics, 8 cores, up to 1200 MHz

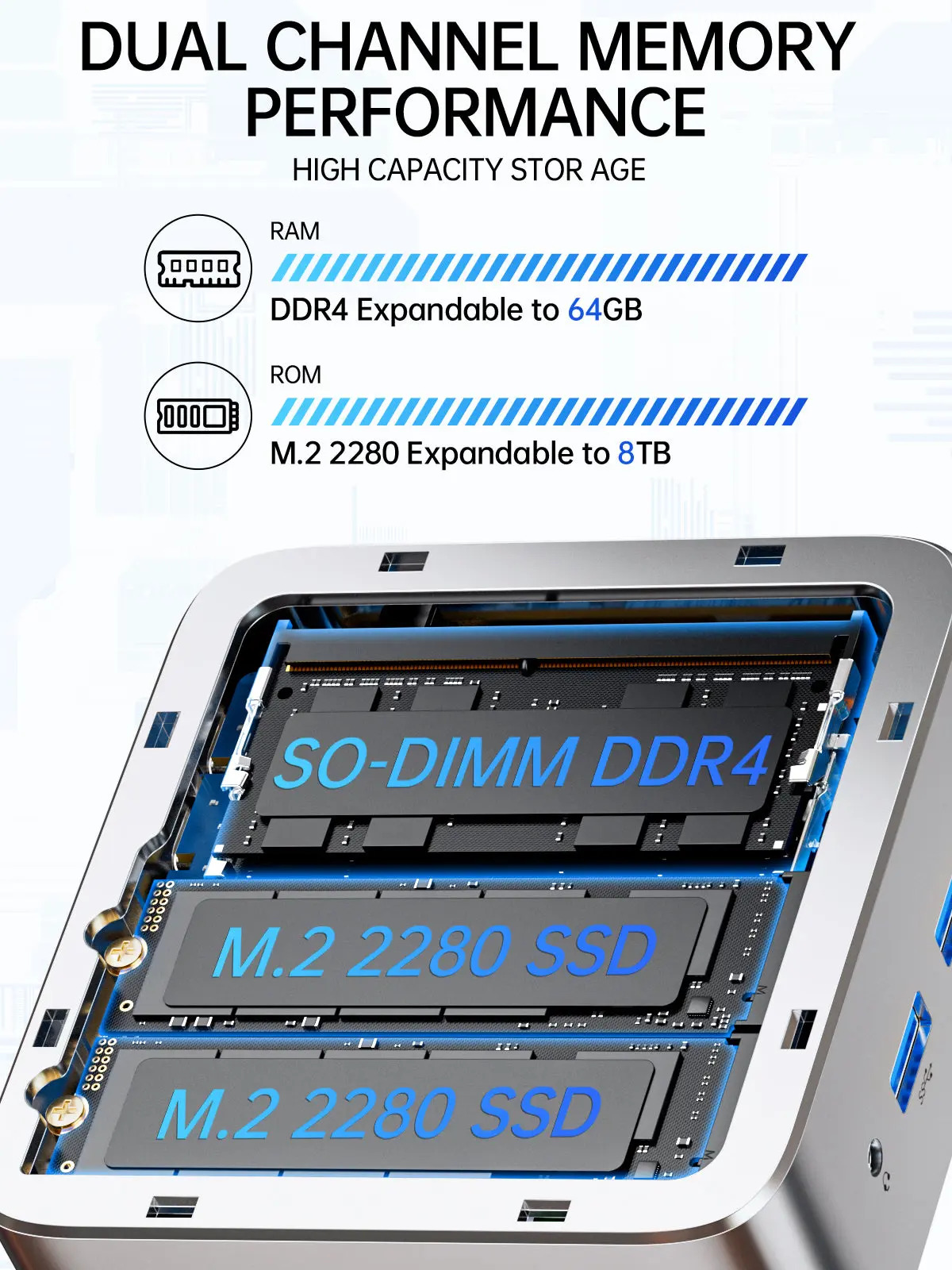

•Memory (RAM): 2×DDR4 SO-DIMM, 16GB, 2400 MT/s, up to 64GB supported
•Storage (ROM): 2×M.2 2280 PCIe 3.0×4 SSD, 512GB, built-in expansion up to 16TB (2×8TB)
•Graphics Output: Triple output via HDMI / DP / Type-C, supports up to 8K resolution (via DP)
•Network: Wi-Fi 5 (Realtek RTL8822CE, up to 866.7 Mbps), Bluetooth 5.0, Gigabit LAN (supports 2.5G/1G/100M/10M, Realtek 8125BG)
•Power: Built-in coin cell battery; Type-C Charger 19V/3.42A (supports PD and non-PD chargers)
External Ports
•USB-A: 2×USB 3.2 Gen1 (5Gbps) + 1×USB 2.0
•Type-C: 1×(DP1.4 4K@30Hz + USB3.2 Gen1 + PD), 1×PD only
•HDMI: 1×HDMI 2.1 (4K60Hz)
•DisplayPort: 1×DP1.4 (4K60Hz)
•Audio: 3.5mm CTIA
•RJ45: 1×Gigabit LAN
•Operating System: Windows 11 Pro
•Language Support: 14 languages (Default English; supports Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic)
•Chassis Dimensions: 103 × 98 × 42 mm
