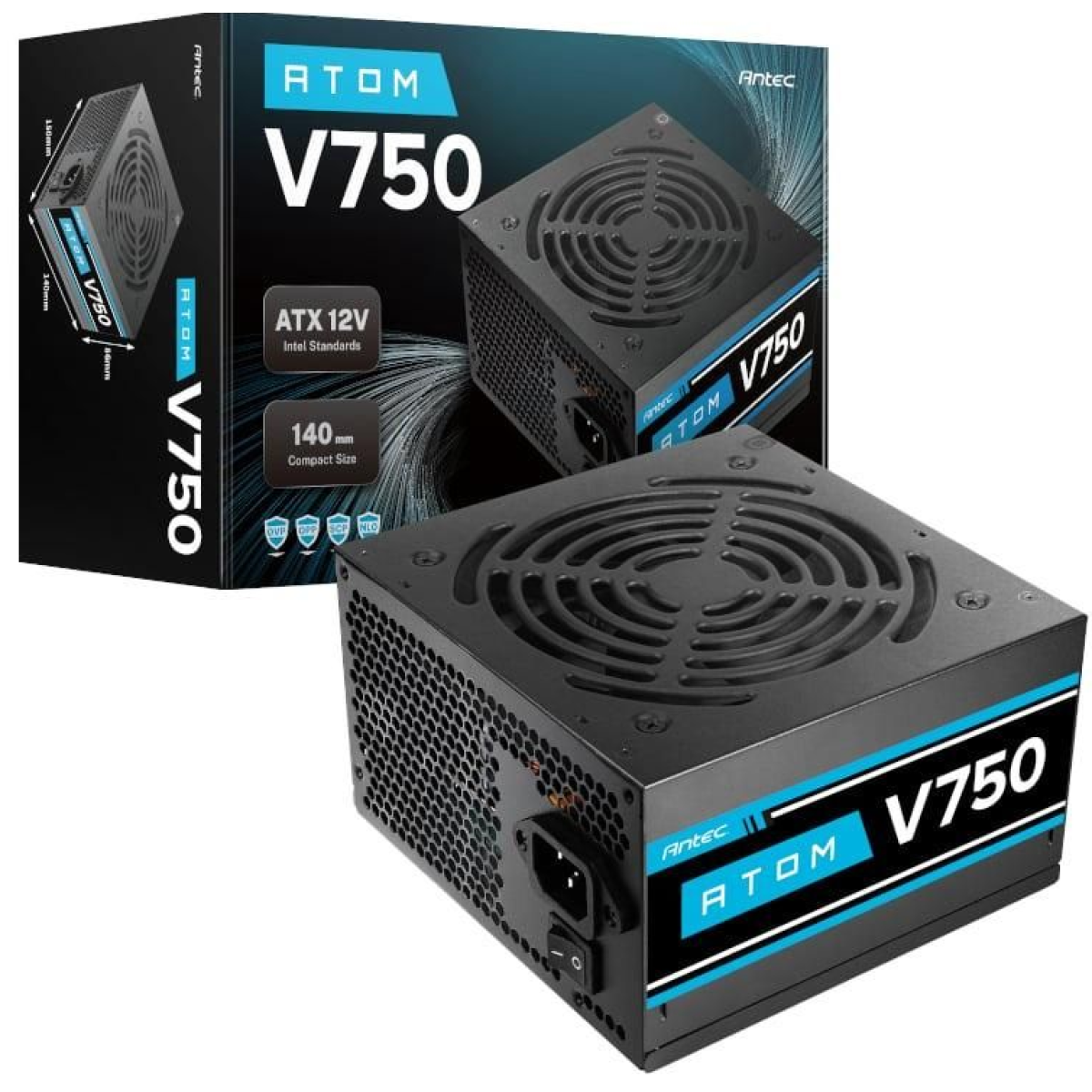

Antec Atom V750 750W Non-Modular ATX Power Supply – 750W non-modular ATX PSU with 120mm silent fan, CircuitShield industrial-grade protections (OPP/OVP/UVP/SCP), Thermal Manager advanced fan control, Active PFC, Intel ATX12V 2.31 compliant, multi-GPU ready, flexible rubberised cables, 2-year warranty.
Product Overview
The Antec Atom V750 is a reliable 750W non-modular ATX power supply designed for desktop gaming PCs, home builds, and office systems. Featuring a quiet 120mm silent sleeve bearing fan, it ensures low noise operation and extended fan life for hours of reliable computing. The Thermal Manager provides advanced fan control for optimal heat and noise management, keeping the PSU at ideal temperatures. CircuitShield technology delivers industrial-grade protections including OPP, OVP, UVP, and SCP to safeguard your system components. With Active PFC, Intel ATX12V 2.31 compliance, and multi-GPU support, it’s ideal for budget-conscious builders needing solid power for mid-range systems in South Africa.
Key Features
– 750W Output Power – 650W continuous, 750W peak/combined power for mid-range gaming and productivity rigs.
– 120mm Silent Fan – Sleeve bearing fan with low noise operation, optimized for quiet computing and longer life.
– CircuitShield Protection – Industrial-grade OPP (Over Power Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), SCP (Short Circuit Protection) for system safety.
– Thermal Manager – Advanced low-voltage fan control for optimal heat and noise management, maintaining optimal PSU temperature.
– Non-Modular Design – Fixed cables for straightforward installation, flexible rubberised cables for cleaner builds.
– Active PFC + ATX12V 2.31 – High efficiency, compliance with Intel ATX12V 2.31 standards for modern compatibility.
– Multi-GPU Ready – 2× 8(6+2) Pin PCI-E connectors support dual GPU setups.
Specifications
– Product Code: ATOMV750
– Product Description: Antec Atom V750 750W Non-Modular ATX Power Supply
– Total Output: 750W (Peak/Combined), 650W (Continuous)
– ATX Version: ATX12V 2.31
– PFC Type: Active PFC
– Input: 230Vac, 6.3A, 50Hz
– Output Rails:
+3.3V: 18A
+5V: 16A
+12V: 42A
-12V: 0.3A
+5Vsb: 2.5A
– 12V Rail: Single 12V rail design
– Cooling Fan: 120mm Silent Fan (Sleeve Bearing)
– Connectors:
24-Pin Main (ATX): ×1
8(4+4) Pin EPS12V (CPU): ×1
8(6+2) Pin PCI-E (GPU): ×2
SATA: ×5
Molex (4-pin): ×2
FDD (Floppy): ×1
– Cable Design: Non-modular, flexible rubberised cables
– GPU Support: Multi-GPU ready (dual GPU)
– Protections: OPP, OVP, UVP, SCP, NLO (No Load Protection)
– Thermal Manager: Advanced fan control for heat/noise optimization
– Dimensions: 140 × 150 × 86 mm (D × W × H)
– Compatibility: Intel ATX12V 2.31 standard
– Warranty: 2 Year Limited Warranty
