Manhattan HDMI Adapter – HDMI A Female to A Male, downward 90° Angle , Retail Box, Limited Lifetime Warranty
Product Overview

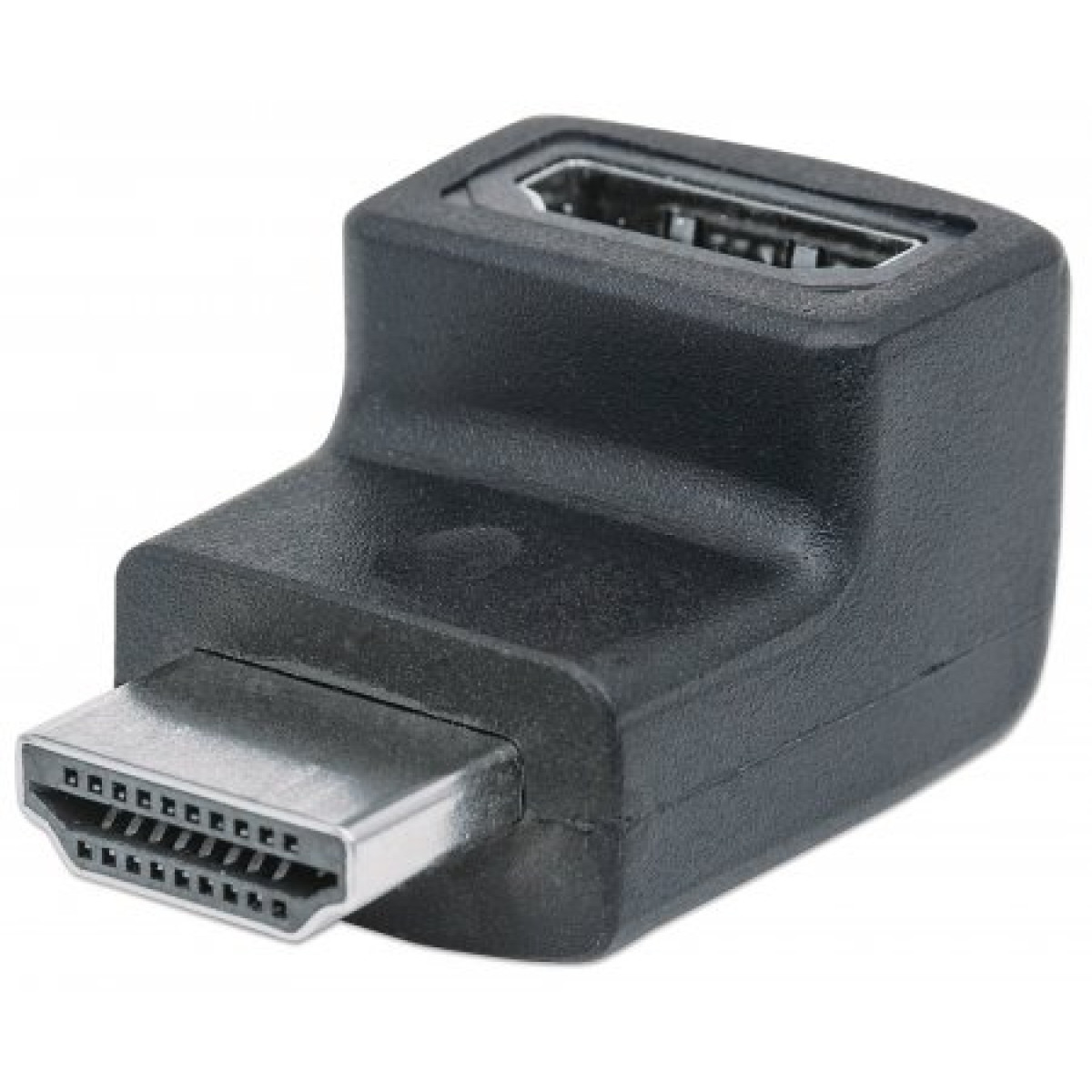

The Manhattan HDMI A Female to A Male, downward 90° Angle Adapter is ideal for navigating around difficult corners or connecting to the most inaccessible device ports. This HDMI Adapter allows 4K resolution and a bandwidth of 10.2 Gbps at 340 MHz
Features
• Connects an HDMI cable to another HDMI cable or display
• Supports 4K resolution
• Convenient 90° downward angle allows for easy connection in the most inconvenient places; e.g., tight corners, difficult ports
• Gold-plated contacts for best performance
• Intended for use with Manhattan HDMI cables
Specifications
•Bandwidth: 10.2 Gbps
•340 MHz
•Meets or exceeds existing HDMI standards
•Length: 4 cm (1.6 in.)
Connectors
•HDMI A female, 19-pin gold-plated contacts
•HDMI A male, 19-pin gold-plated contacts
Electrical
•Current rating: 0.5 ADC
•Withstanding voltage: 300 VDC
•Insulation resistance: 5 MΩ
•Conductive resistance: 2 Ω
General
•Length (overall): 36 x 23 x 20 mm (1.4 x 0.9 x 0.8 in.)
•Weight: 10 g (0.35 oz.)
•Moulded PVC
Package Contents
•HDMI Adapter, A to A
