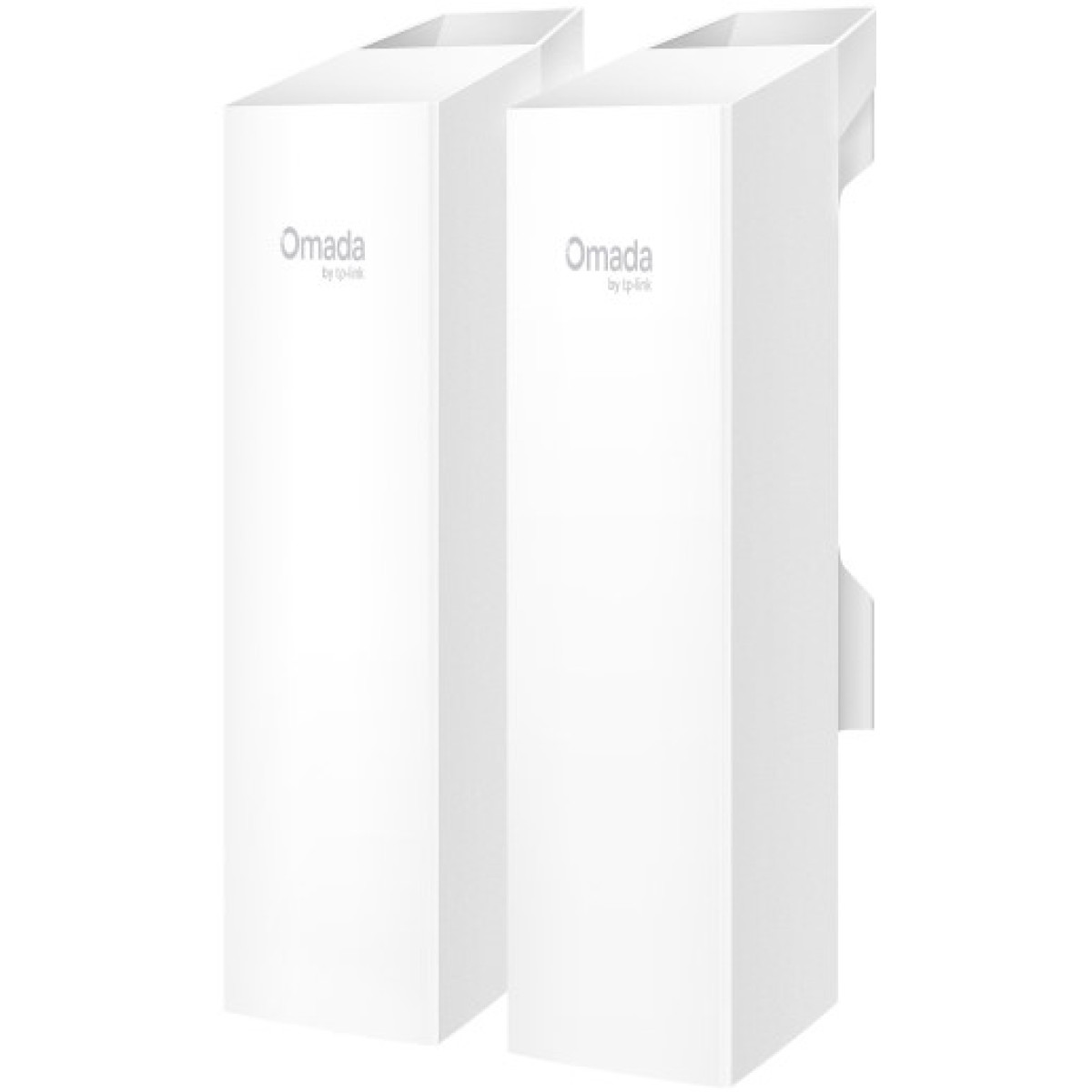

TP-Link Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge – Up to 1640 ft Wi-Fi Transmission, Equipped with Omada SmartBridging, App Guided Alignment, Flexible Power Supply with 48V Passive PoE, 3 x Fast Ethernet Ports, IP65 Weatherproof, Remote Monitoring & Management, Plug and Play Preconfigured Kit, Retail Box, 6 Months Warranty.
Product Overview
TP‑Link EAP100‑Bridge KIT 2.4 GHz 300 Mbps Bridge Outdoor‑ready IP65‑rated 2.4 GHz point‑to‑point bridge with up to 500 m range, 3× 10/100 Mbps Ethernet ports, and support for 802.3af PoE, 12/24/48 V passive PoE, and 12 V DC. Features 2×2 MIMO, beamforming, mesh, VLAN, guest network, 8 SSIDs, and Omada SDN management via Omada app, hardware/software controllers, or standalone web UI. Compact at 79 × 60 × 224 mm with pole/wall‑mount kit, operating from ‑40 °C to 70 °C and designed for resilient long‑distance links in harsh environments.
Features
•Up to 1640 ft (500 m)Wi-Fi transmission
•Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
•Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments.
•App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification.
•Flexible Power Supply: 802.3af PoE, 24V /48V Passive PoE, and 12V DC (compatible with TP-Link solar power supply systems).
•3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch.
•Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40℉ to +158 ℉.
•Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app.
Specifications
•Product Code: EAP100 BRIDGE KIT
•Description: Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge
•Interface: 3x 10/100 Mbps Ethernet Ports
•Button: Pair/Reset
Power Supply
•12V DC
•802.3af PoE
•24V Passive PoE / 48V Passive PoE (Passive PoE Adapter Included – For Dry Indoor Use Only)
•Max. Power Consumption: 4.8 W
•Dimensions ( W x D x H ): 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
Antenna
•Internal 2×2 Dual-polarized directional MIMO antennas
•2.4 GHz: 8.0 dBi
•Horizontal:70°, Vertical: 70°
•Weatherproof Enclosure: IP65
•Mounting: Pole and wall mounting ( Pole accessories included)
•Coverage: 500 m (0.31 mi)*
•Wireless Standards: IEEE 802.11b/g/n
•Frequency: 2.4 GHz
•Signal Rate: 2.4 GHz: Up to 300 Mbps
Wireless Functions
•MIMO: 2.4G 2 × 2 MIMO
•Mesh
•Beamforming
•Channel: 1-11 (US); 1-13 (EU)
•Multiple SSIDs:8
•Wireless Statistics
•Wireless Schedule
•Reboot Schedule
•RADIUS Accounting
•Static IP/Dynamic IP
•Rate Limit
•Guest Network
•Enable/Disable Wireless Radio
•Enable/Disable SSID Broadcast
Wireless Security
•VLAN
•Rogue AP Detection
•Maximum number of MAC Filter: 4,000
•Wireless Encryption
Transmission Power
•CE: <20dBm (2.4 GHz, EIRP);
•FCC:<22dBm (2.4 GHz)
•Omada App: Yes
•Restore & Backup: Yes
•Firmware update via Web: Yes
•NTP: Yes
Centralized Management
•Omada Hardware Controller
•Omada Software Controller
•Omada App
•Email Alerts: Yes
•LED ON/OFF Control: Yes
•SNMP: Yes
•System Logging Local/Remote Syslog: Yes
•SSH: Yes
•Web-based Management: Yes
•Certification: CE, FCC, RoHS
