Asus ExpertCenter P500SV SFF Desktop PC – Intel® Core™ i5-13420H Processor 2.1 GHz (12MB Cache, up to 4.6 GHz, 8 cores, 12 Threads), 8GB DDR5 5600MHz RAM (1 x 8GB, 1 Slot Free, 64GB Max), 512GB M.2 2280 NVMe PCIe 4.0 Solid State Drive, No Optical Drive, Intel Graphics, Dual-Band Wi-Fi 6 802.11ax + Bluetooth 5.4, Connectivity, Windows 11 Pro 64-Bit, 1 Year Warranty.
Product Overview
The ASUS ExpertCenter Essential SFF packs an Intel Core i5-13420H processor (2.1 GHz base, up to 4.6 GHz turbo, 8 cores, 12 threads) with 8GB DDR5-5600 SO-DIMM RAM (upgradable to 64GB dual-channel) and a 512GB PCIe 4.0 M.2 SSD, plus room for a 3.5″ HDD up to 2TB and dual M.2 slots. Its 8.6-liter chassis supports flexible vertical/horizontal placement, whisper-quiet copper-pipe cooling, WiFi 6 (AX201), and robust I/O including HDMI/DP for 4K, USB 3.2 Gen1 Type-A/C, 1G LAN, and 7.1-channel audio with two-way AI noise-canceling. Built for longevity with ASUS’s No.1 motherboard, 100% solid capacitors, US military-grade durability, and up to 80 PLUS Platinum PSU efficiency, it runs Windows 11 Pro—ideal for office multitasking, light content creation, or home IT setups.
Specifications
•Product Code: P500SV-C58512G1X
•Description: Asus ExpertCenter P500 SSF Desktop PC
•Model: P500SV
•Color: Gray
•Operating System: Windows 11 Pro
•Processor: Intel® Core™ i5-13420H Processor 2.1 GHz (12MB Cache, up to 4.6 GHz, 8 cores, 12 Threads)
•Graphics: Intel UHD Graphics
•Memory: 8GB DDR5 SO-DIMM, Memory max up to:64GB
•SATA: 2 x SATA 6.0Gb/s ports
•Storage: 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
•Optical Drive (Optional): Without optical drive

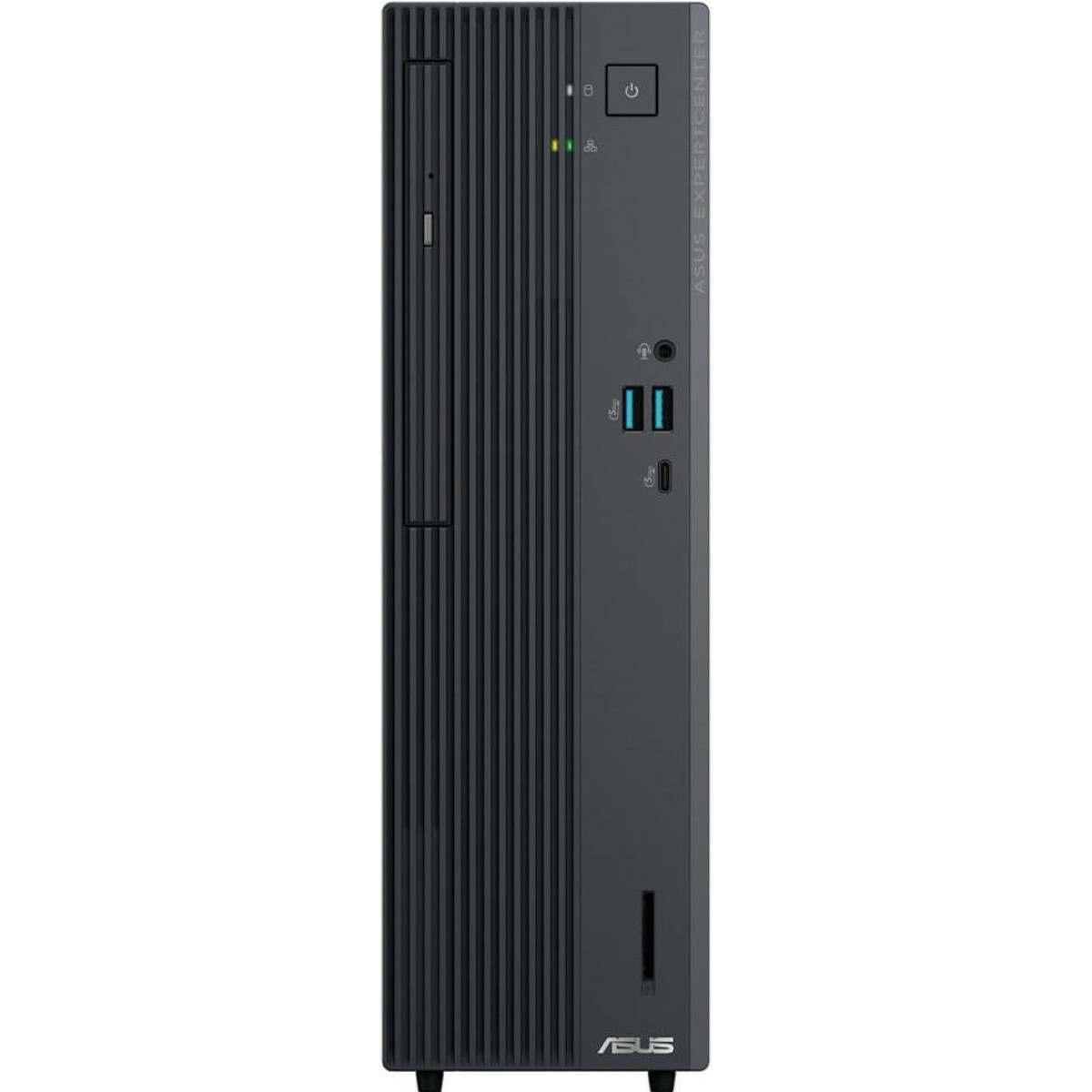

Front I/O Ports
•1x 3.5mm combo audio jack
•2x USB 3.2 Gen 1 Type-A
•1x USB 3.2 Gen 1 Type-C
•
1x 2 in 1 card reader SD / MMC
Rear I/O Ports
•1x RJ45 Gigabit Ethernet
•1x HDMI 1.4
•1x Displayport 1.4
•1x 7.1 channel audio (microphone, line-out, Line-in)
•1x Kensington lock
•4x USB 2.0 Type-A
Expansion Slots(includes used)
•1x PCIe® 4.0 x 16 (operating at PCIe® 4.0 x8)
•2x M.2 2280 connector for storage
•1x M.2 connector for WiFi
•2x DDR5 SO-DIMM slot
•Audio: High Definition 7.1 Channel Audio
•Network and Communication: Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card
•Power Supply: 180W power supply (80+ Bronze, peak 228W)
•Weight: 05.06 kg (11.16 lbs)
•Dimensions (W x D x H): 09.30 x 29.60 x 30.90 cm (3.66″ x 11.65″ x 12.17″)
Ecolabels & Compliances
•EPEAT Silver
•Energy star 9.0
•RoHS
•REACH
Security
•Kensington Security Slot™(7x 3mm)
•HDD User Password Protection and Security
•Discrete Trusted Platform Module (TPM) 2.0
•Microsoft Security Level 2
•Thermal: Air Cooler
