Decibell N3ES Mini Desktop PC – AMD Ryzen 5 7530U Processor (6 Cores, 2.0GHz Base Clock, 12 Threads) 28W TDP, 16GB LPDDR4X Up to 3733MT/s Memory, 512GB M.2 2280 PCIe SSD, AMD Radeon Graphics Up to 2000MHz, WiFi 6 and Bluetooth 5.2 Connectivity, Windows 11 Pro, Retail Box, 1 Year Warranty.
Product Overview

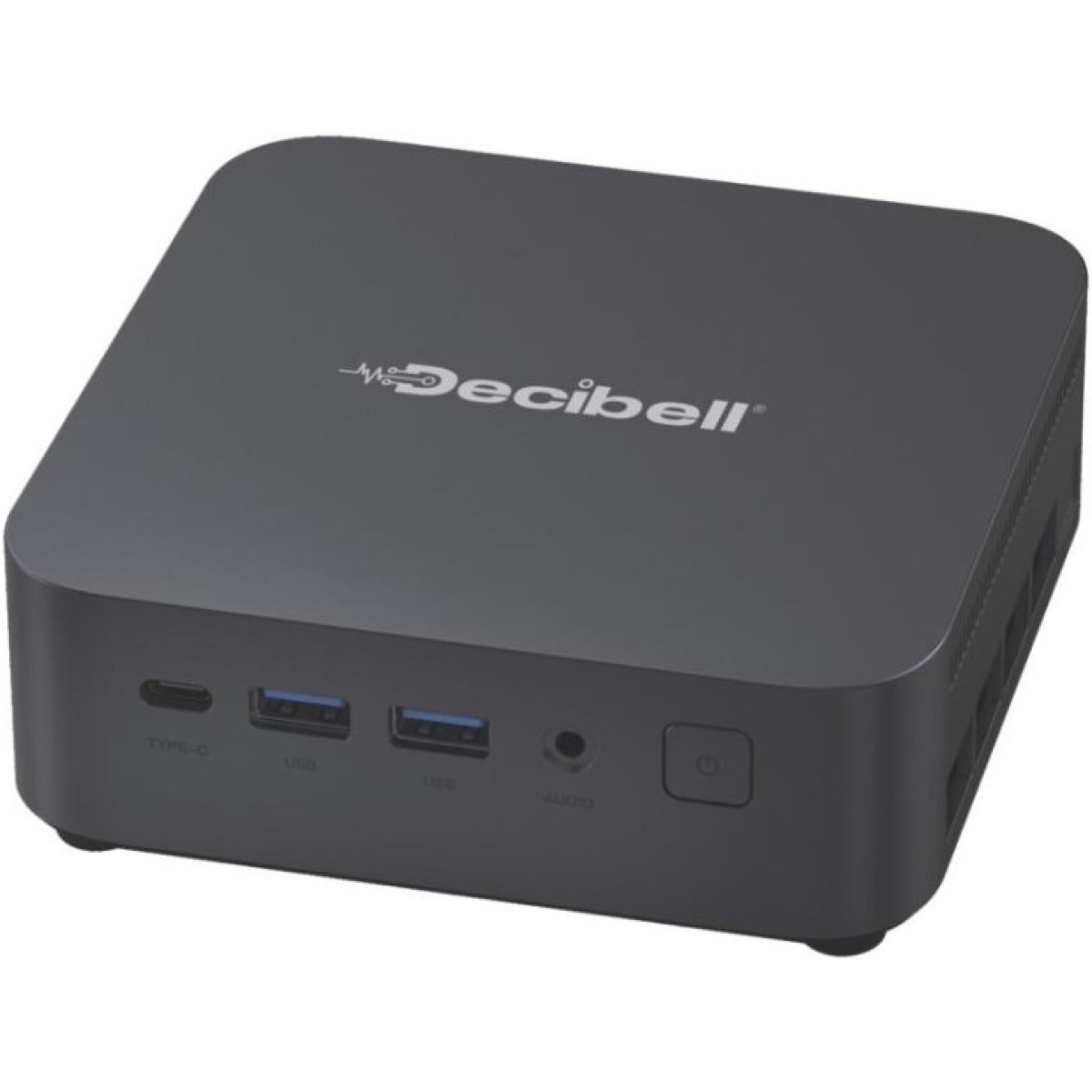

Decibell N3ES Mini Desktop PC — ultra-compact SFF (128 × 128 × 41.3 mm, PC+ABS body) weighing ~0.6–0.8 kg (typical for this chassis) — powered by AMD Ryzen™ 5 7530U (6C/12T, 2.0–4.5 GHz, 28W) with integrated AMD Radeon™ Graphics (7 cores, 2000 MHz) for efficient multitasking and light creative work. 16GB onboard dual‑channel LPDDR4X (up to 3733 MT/s) and a 512GB M.2 SSD (expandable to 2TB via M.2 2280 PCIe/SATA + extra M.2 2280 SATA slot), plus Wi‑Fi 6 and Bluetooth 5.2 for modern connectivity. Rich I/O in a tiny footprint: HDMI 2.0, DP1.4, USB‑C, front USB3.2 10Gbps ×2, rear USB3.0 5Gbps ×4, Gigabit RJ45, 3.5 mm audio, Windows 11 Pro ready, powered by external 19V/3.42A adapter (100–240V input).
Specifications
Product Code: N3ES-R5-7530U-16-512
Description: Decibell N3ES Mini Desktop PC
Operating System: Windows 11 Professional
Dimensions: 128 × 128 × 41.3 mm
Case Material: PC + ABS
CPU: AMD Ryzen™ 5 7530U
Platform: AMD FP6
Cores: 6
Threads: 12
Base Clock: 2.0 GHz
Max Boost Clock: Up to 4.5 GHz
L2 Cache: 3MB
L3 Cache: 16MB
TDP: 28W
GPU: AMD Radeon™ Graphics
Graphics Cores: 7
Graphics Frequency: Up to 2000 MHz
Installed Memory: 16GB
Memory Type: Onboard LPDDR4X (Dual Channel)
Memory Speed: Up to 3733 MT/s
Maximum Capacity: 16GB
Installed Storage: 512GB SSD
Maximum Supported Storage: Up to 2TB
SSD Slot 1: M.2 2280 SATA / PCIe
SSD Slot 2: M.2 2280 SATA
Wi-Fi: Wi-Fi 6
Bluetooth: Bluetooth 5.2
HDMI 2.0: 1
DisplayPort 1.4: 1
USB Type-C (Display Output): 1
Multi-Display Support: Up to 3 Displays
I/O Ports
Front USB 3.2 (10Gbps): 2
Rear USB 3.0 (5Gbps): 4
RJ45 Gigabit Ethernet: 1
Audio Jack (3.5mm): 1
DC Power Input: 1 (5.5 × 2.1mm)
Ethernet: Gigabit LAN (10/100/1000Mbps)
AC Input: 100–240V, 50/60Hz
DC Output: 19V / 3.42A
